Attributes:

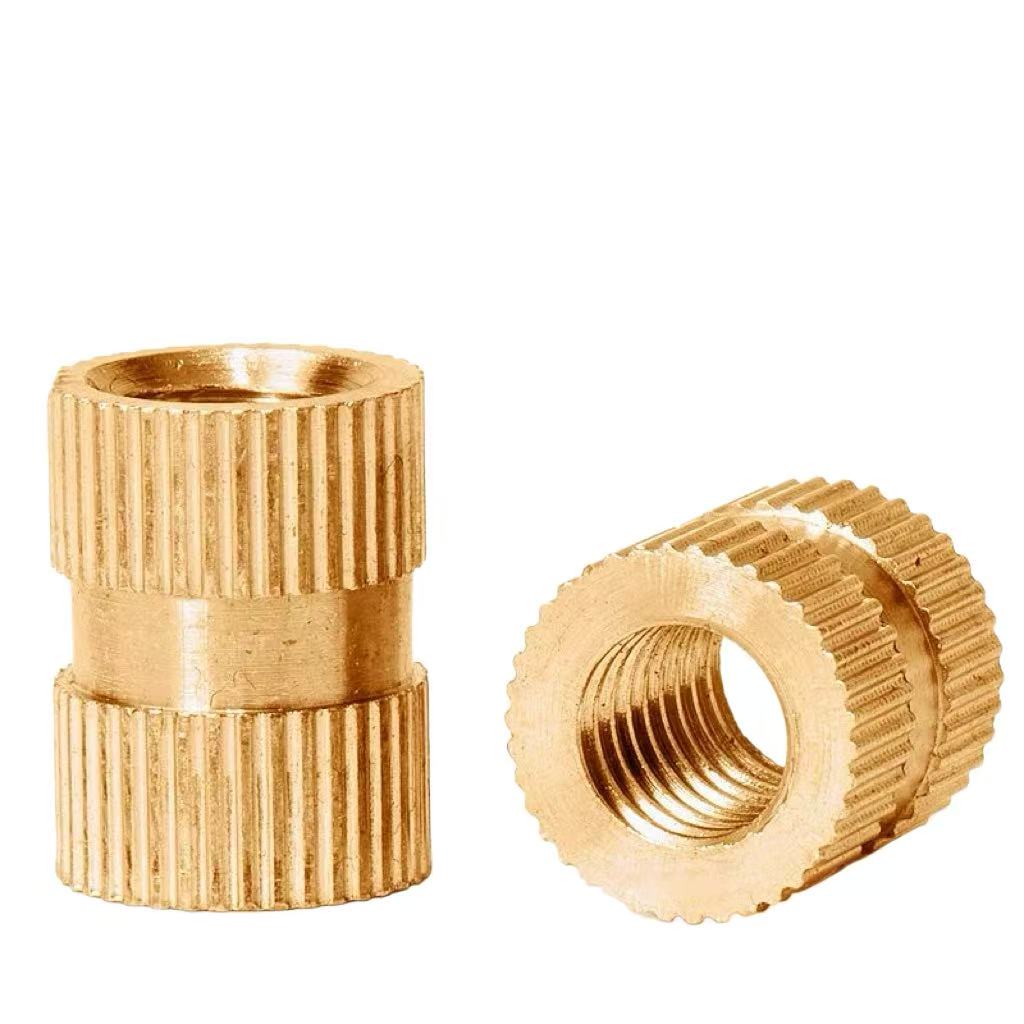

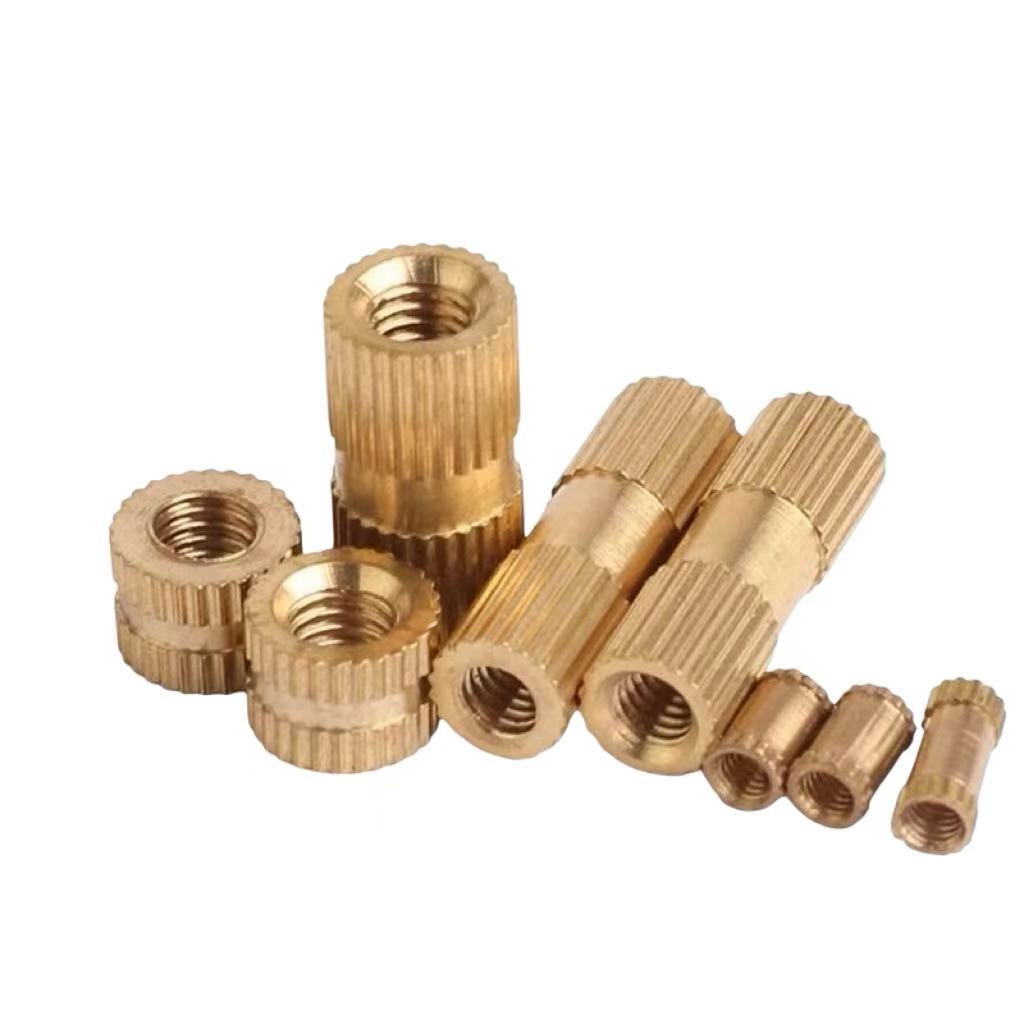

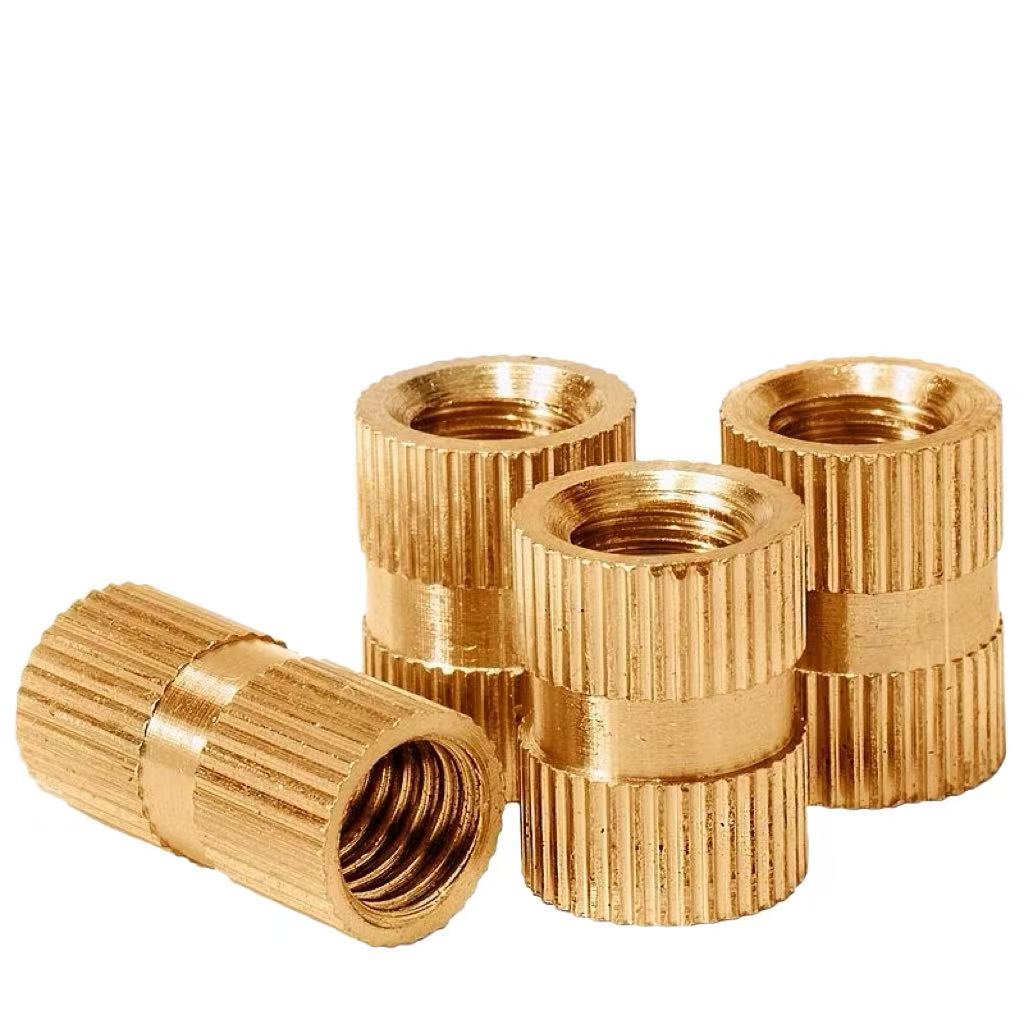

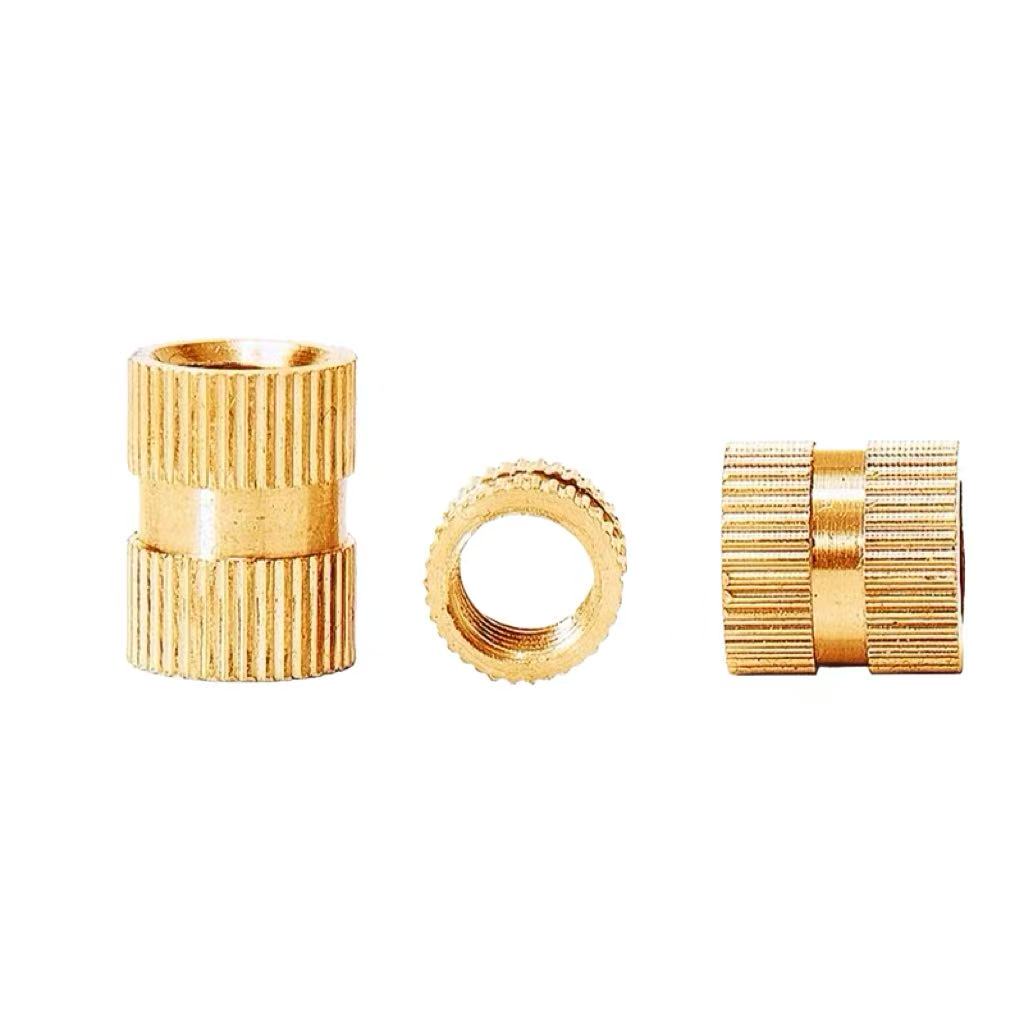

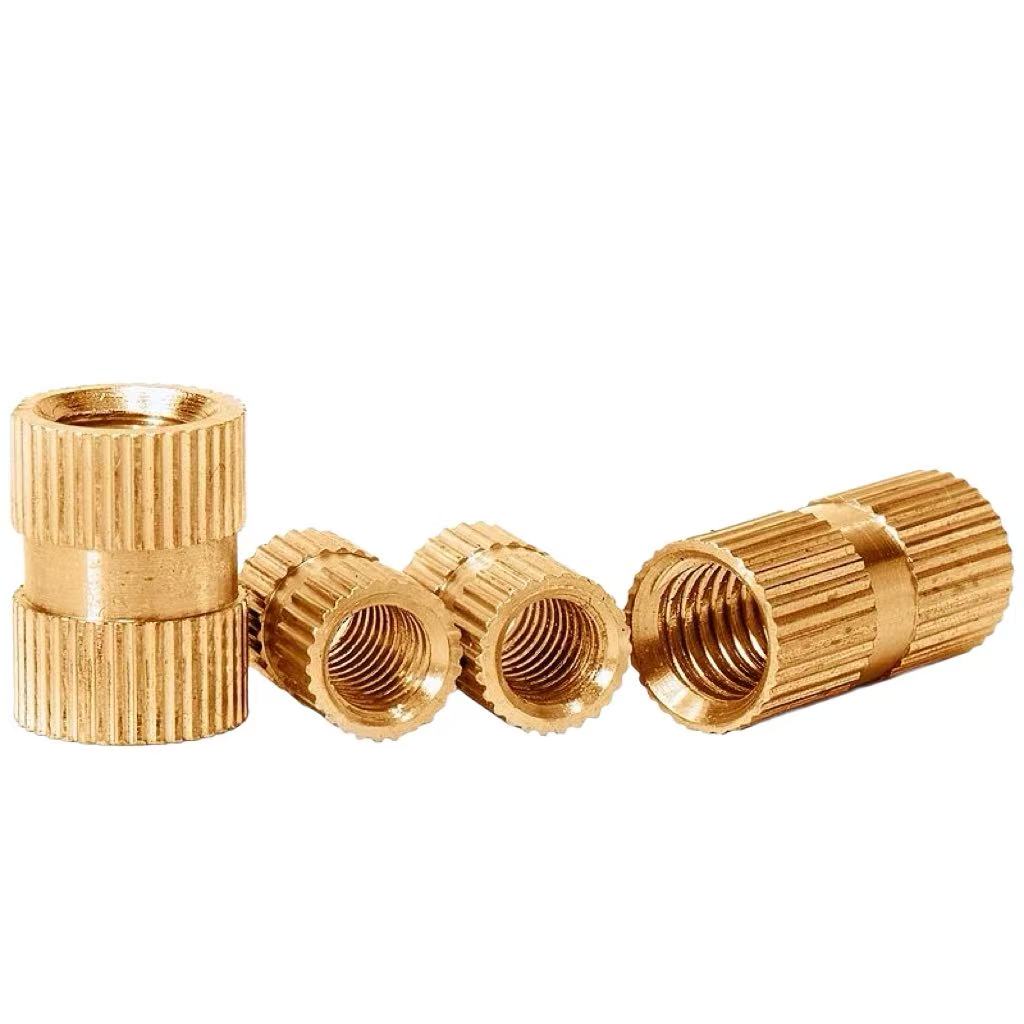

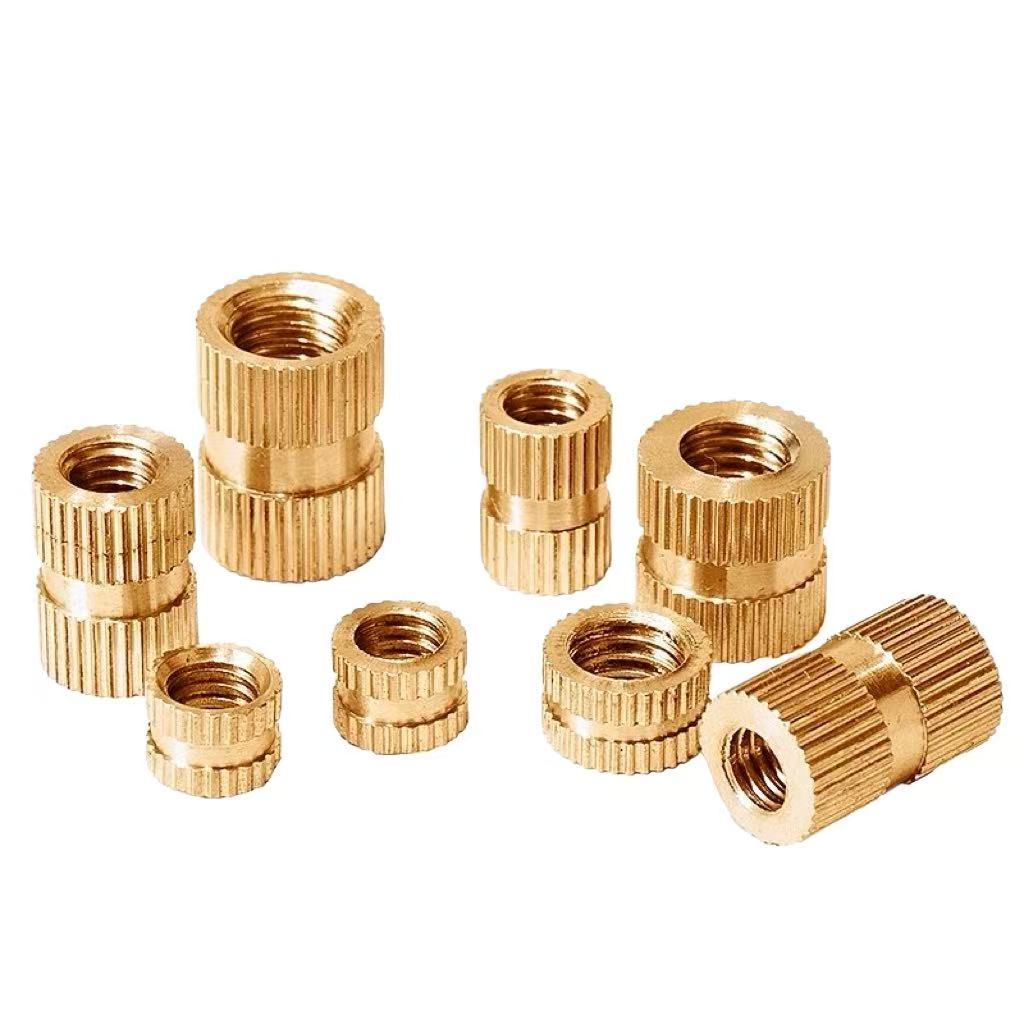

● Type: It is divided into two types: through - hole (Type A) and blind - hole (Type B).
● Material: Common materials include C3604 brass, H59 - 3 copper, free - cutting steel, etc., and it can also be produced according to the user - specified material.
● Specification: The thread specifications range from M2 to M16.
● Surface Treatment: There are surface treatment methods such as natural color, galvanizing, and nickel - plating.
Features:
The top of the embedded round nut is embedded with a rubber washer, which can play a role in locking and sealing when tightened. Its structure is simple and practical, and the design of straight lines and intermediate slots is convenient for better combination with plastics during the injection - molding process. Moreover, its dimensional specifications are precise, and the tolerance control is strict, ensuring accurate matching with other mechanical components.
Applications:
It is widely used in the mechanical equipment field, such as the fastening connection of automobiles, machine tools, lifting equipment, etc.; in the assembly of electronic equipment, it can ensure the tight connection between components and improve the overall performance; in addition, it also has important applications in the aerospace field, because of its high reliability and good sealing performance, which can ensure the safety of the aircraft.
| Thread Size | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | ||||
| d | |||||||||||||
| dk | Before knurled | max | 4 | 4.5 | 5 | 6 | 8 | 10 | 12 | 15 | 18 | ||
| min | 3.82 | 4.32 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 14.73 | 17.73 | ||||
| d1 | max | 3 | 3.5 | 4 | 5 | 7 | 9 | 10 | 13 | 16 | |||
| b | - | - | - | - | - | - | - | - | - | ||||
| c | - | - | - | - | - | - | - | - | - | ||||
| g | - | - | - | - | - | - | - | - | - | ||||
| Weight of per 1000 steel products(≈kg) | - | - | - | - | - | - | - | - | - | ||||
