Attributes:
● Material: Usually made of carbon steel or stainless steel, such as A2, A4 stainless steel. The common property classes of carbon steel are 4.6 and 8.8.
● Specification: The thread specifications range from M6 to M24, and the length generally ranges from 20mm to 200mm.
● Thread Type: Metric machine thread.

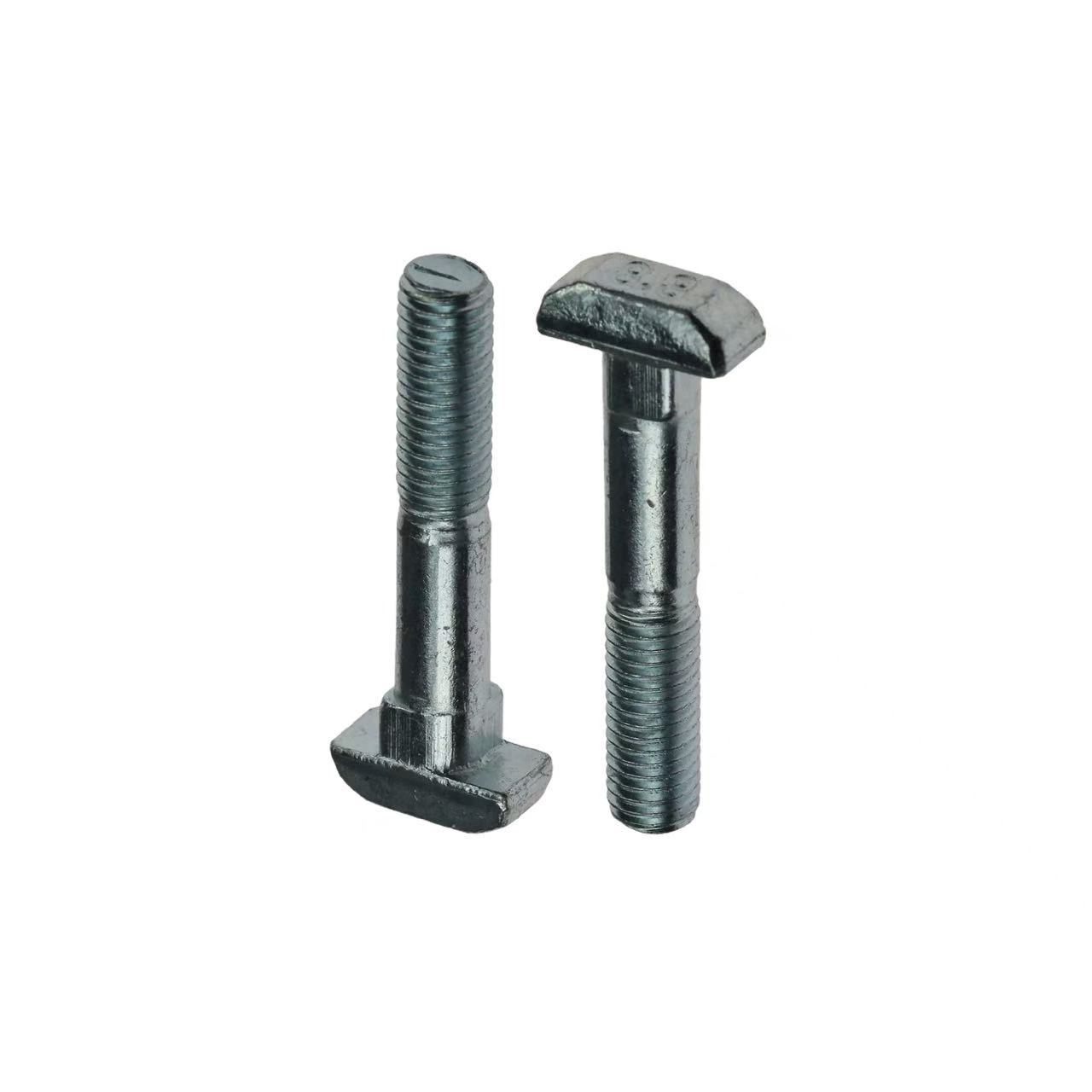

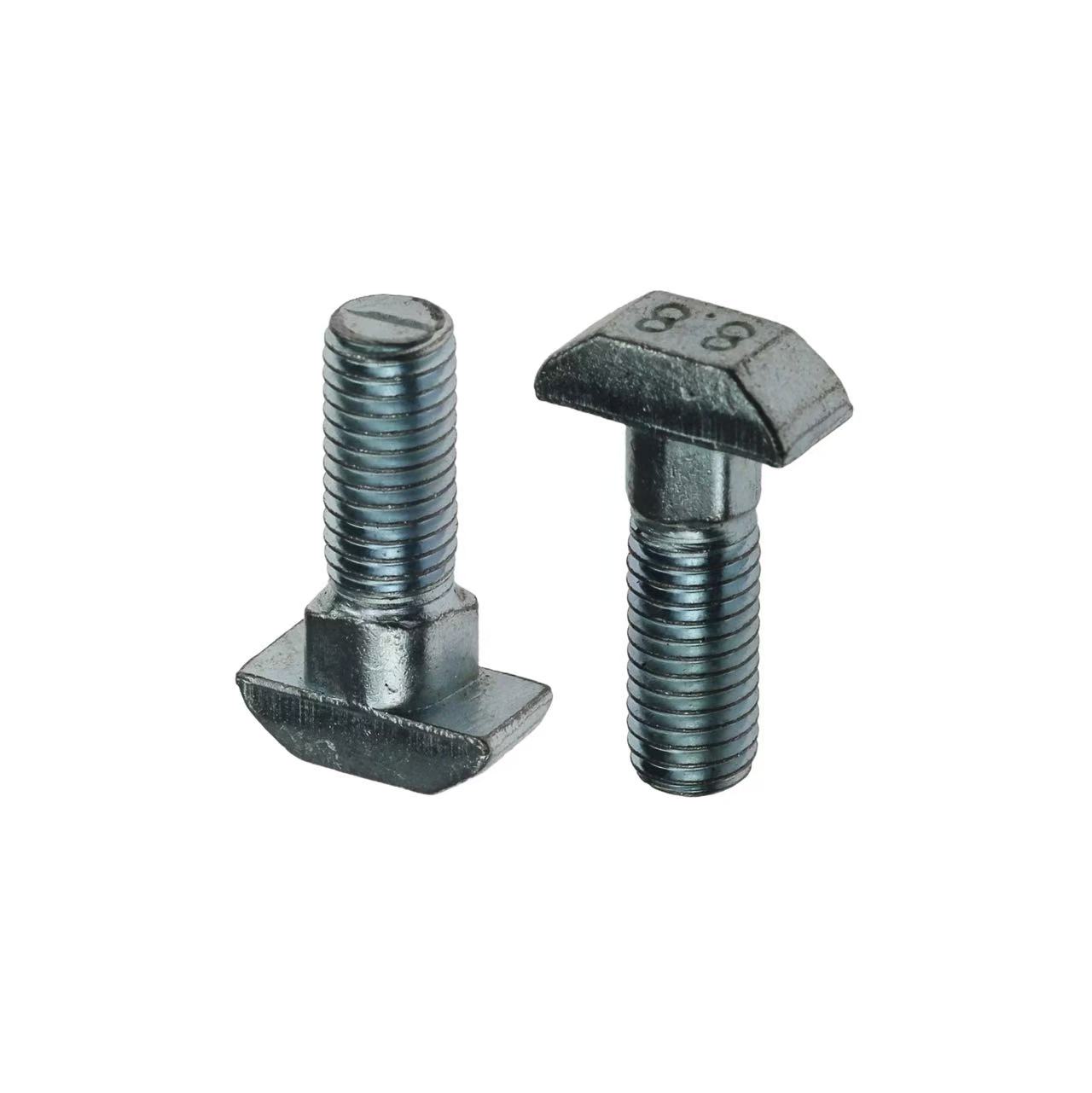

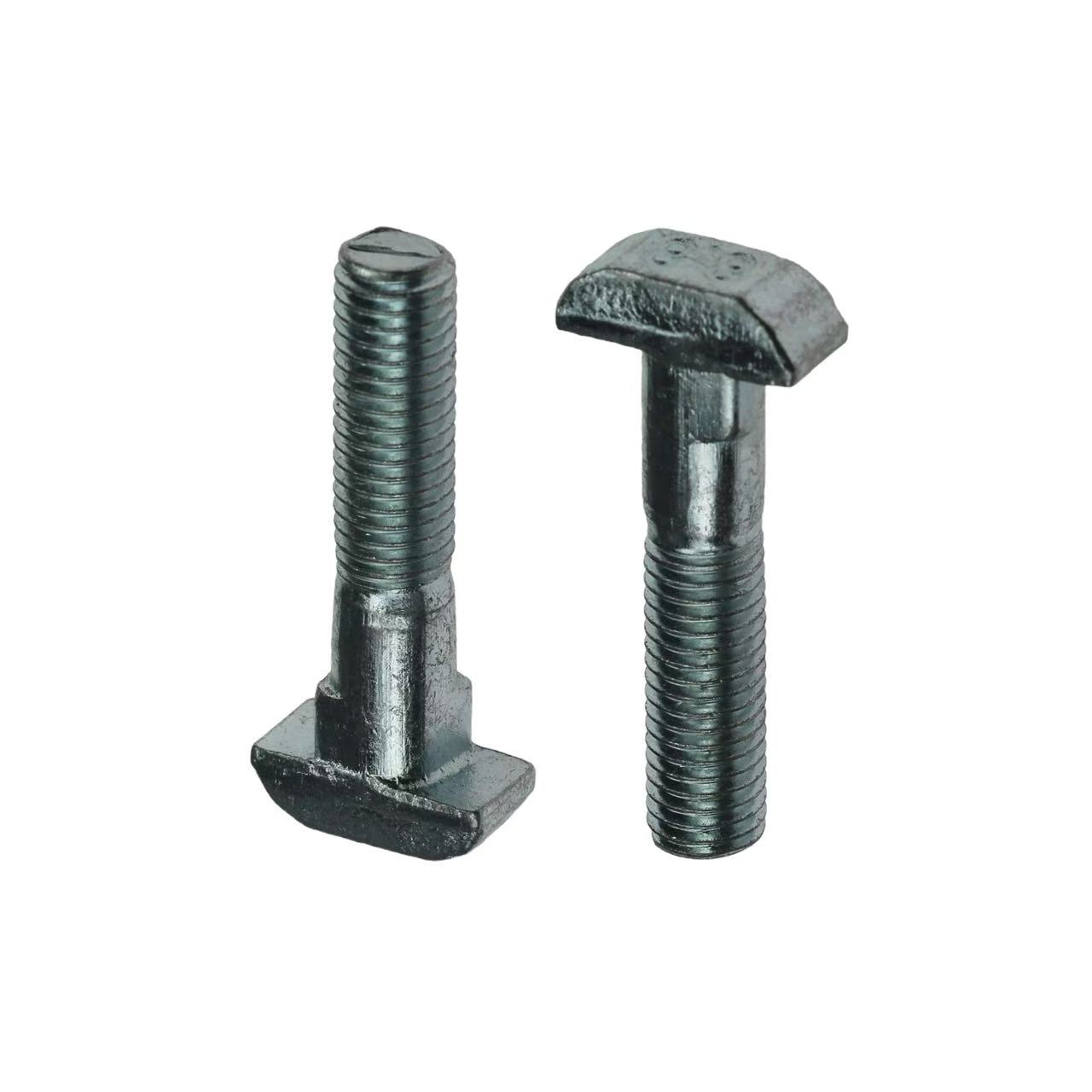

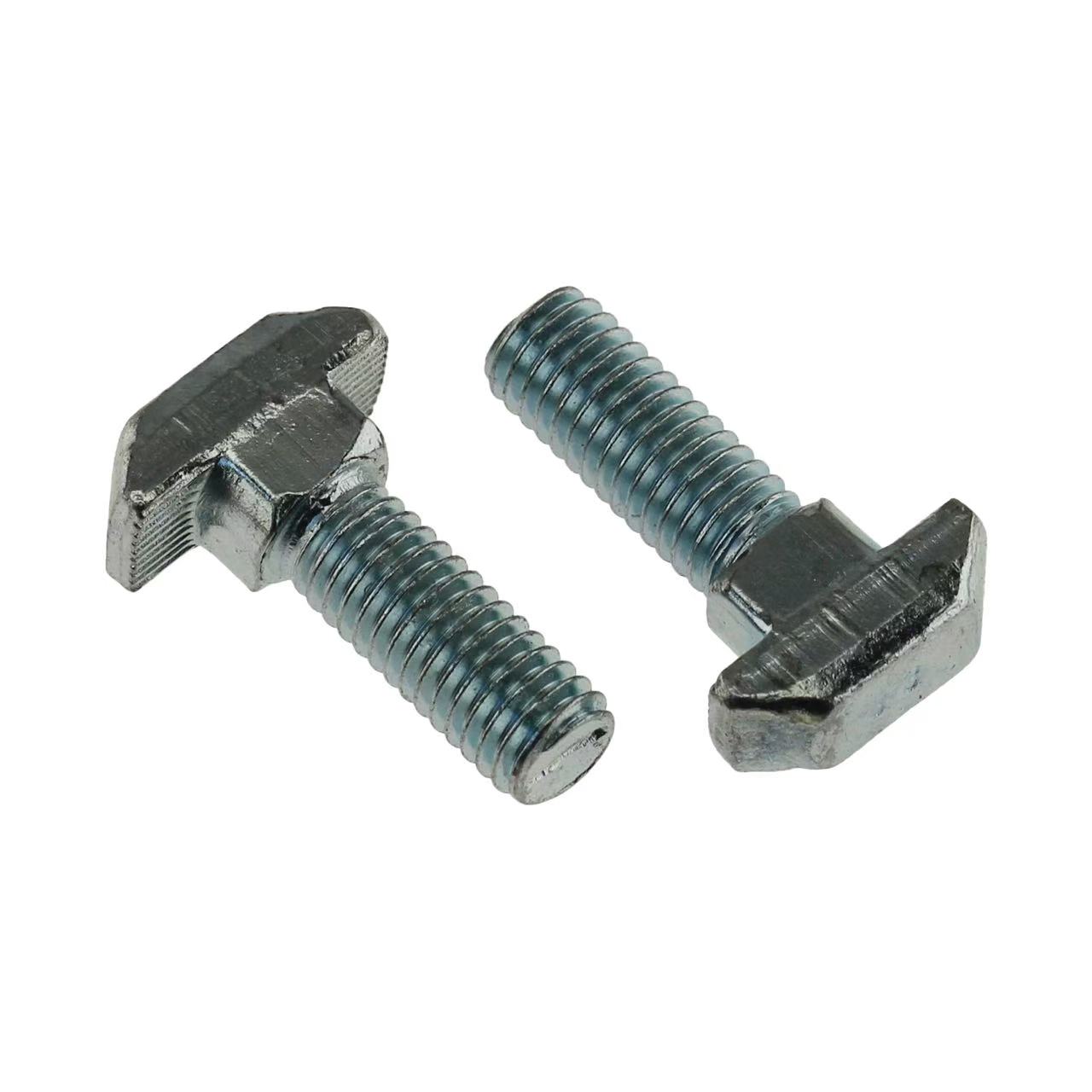

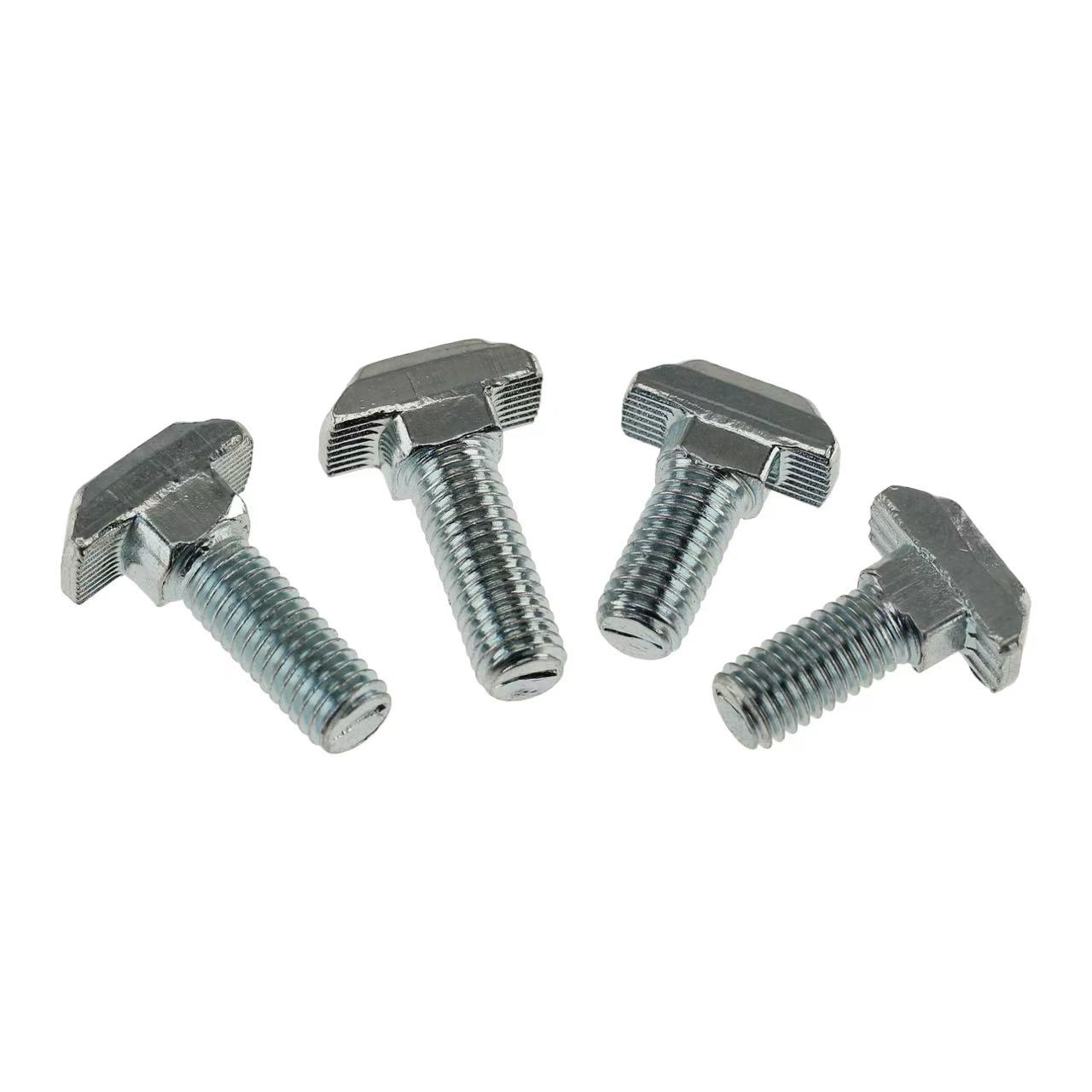

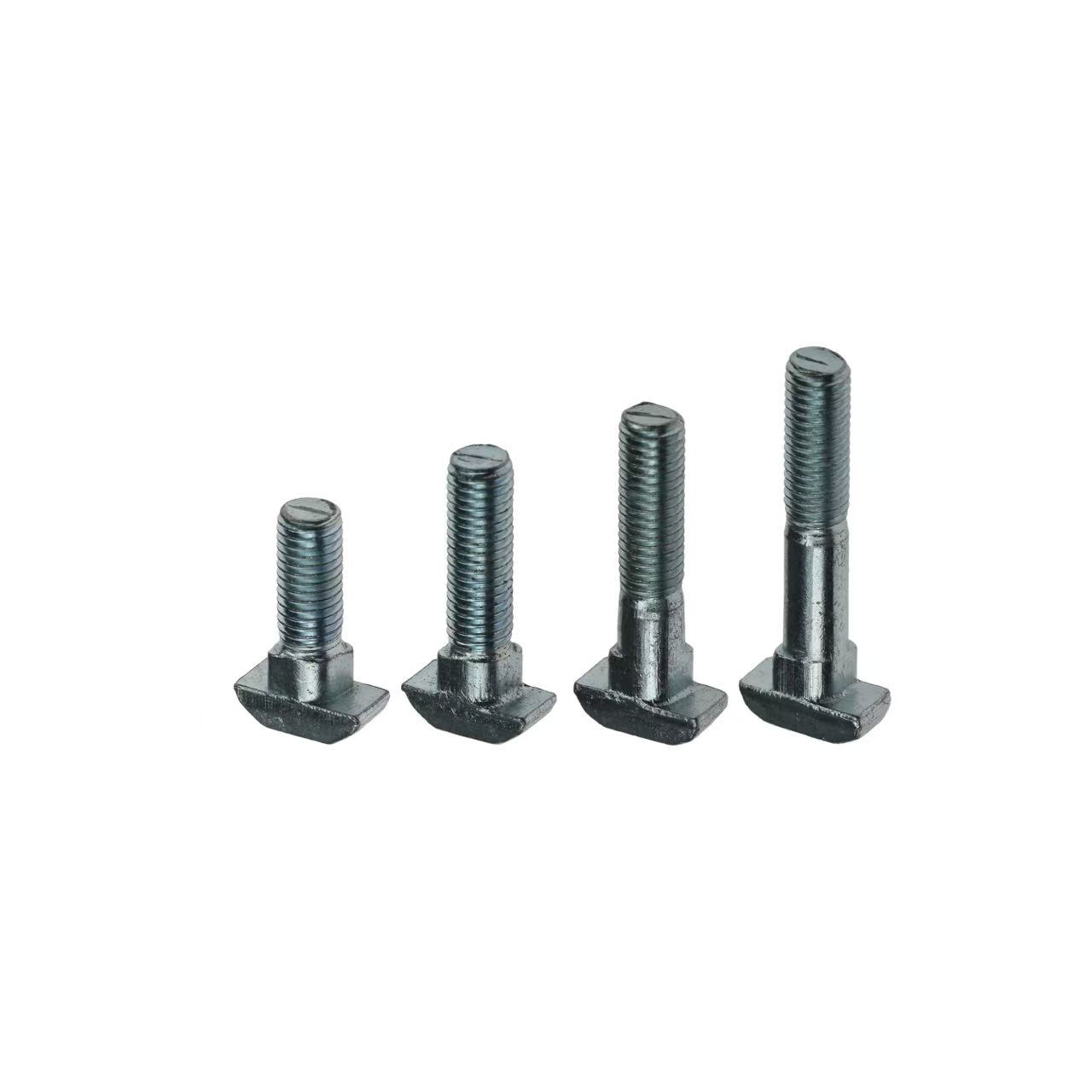

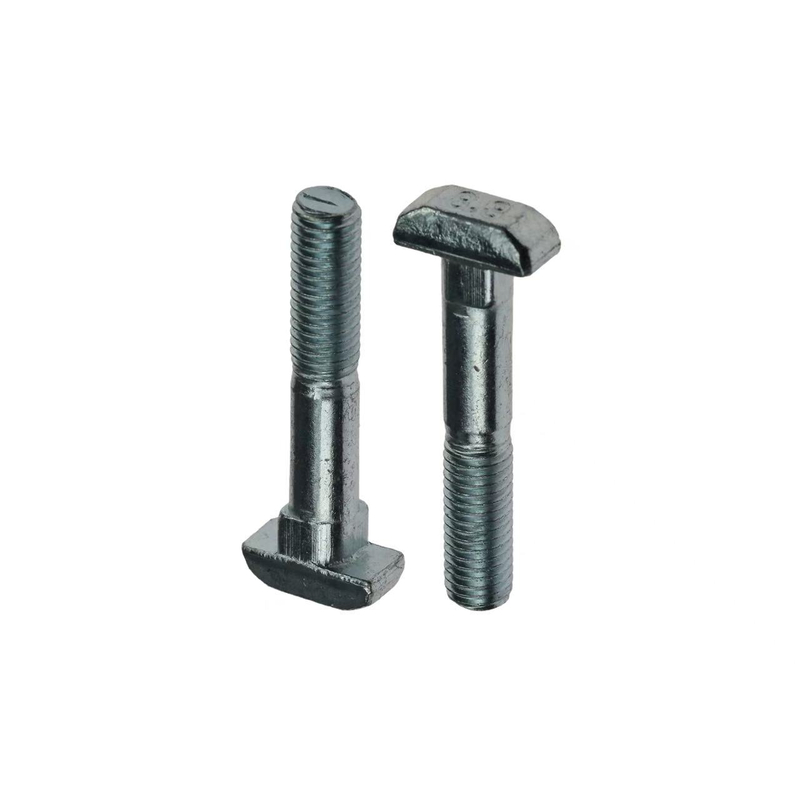

● Head/Body: T - shaped square neck structure.
Features:
●Easy to Install: The T - shaped square neck design allows the bolt to be directly inserted into the T - shaped slot without additional tools to fix the bolt head, which is convenient and quick.
● Good Anti - loosening Performance: The square neck is closely matched with the T - shaped slot. When the nut is tightened, the bolt will not rotate, effectively preventing loosening and ensuring the reliability of the connection.
● Strong Applicability: It can be used for T - shaped slot structures of different materials and shapes, and is suitable for a variety of industrial scenarios.
Applications:
● Construction Field: In the construction of high - speed railways and rail transit, it is used to fix track fasteners, brackets, etc. In curtain wall decoration, it can fix curtain wall keels and other components.
● Industrial Equipment: It is often used for the installation and fixation of various mechanical equipment, such as machine tools, lifting equipment, etc., connecting the various components of the equipment together.
| Screw Thread | M6 | M8 | M10 | M12 | M16 | M20 | M24 | M30 | M36 | M42 | M48 | |
| d | ||||||||||||
| P | Pitch | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 |
| ds | Nominal Size | 6 | 8 | 10 | 12 | 16 | 20 | 24 | 30 | 36 | 42 | 48 |
| max | 6.48 | 8.58 | 10.58 | 12.7 | 16.7 | 20.84 | 24.84 | 30.84 | 37 | 43 | 49 | |
| min | 5.52 | 7.42 | 9.42 | 11.3 | 15.3 | 19.16 | 23.16 | 29.16 | 35 | 41 | 47 | |
| k | Nominal Size | 4.5 | 5.5 | 7 | 8 | 10.5 | 13 | 15 | 19 | 23 | 26 | 30 |
| max | 4.9 | 5.9 | 7.5 | 8.75 | 11.4 | 13.9 | 15.9 | 20 | 24 | 27 | 31 | |
| min | 4.1 | 5.1 | 6.5 | 7.25 | 9.6 | 12.1 | 14.1 | 18 | 22 | 25 | 29 | |
| n | Nominal Size | 6 | 8 | 10 | 12 | 16 | 20 | 24 | 30 | 36 | 42 | 48 |
| max | 6.6 | 8.75 | 10.75 | 12.9 | 16.9 | 21 | 25 | 31 | 37.25 | 43.25 | 49.25 | |
| min | 5.4 | 7.25 | 9.25 | 11.1 | 15.1 | 19 | 23 | 29 | 34.75 | 40.75 | 46.75 | |
| m | Nominal Size | 16 | 18 | 21 | 26 | 30 | 36 | 43 | 54 | 66 | 80 | 88 |
| min | 15.1 | 17.1 | 20 | 25 | 29 | 34.75 | 41.75 | 52.5 | 64.5 | 78.5 | 86.25 | |
| max | 16.9 | 18.9 | 22 | 27 | 31 | 37.25 | 44.25 | 55.5 | 67.5 | 81.5 | 89.75 | |
| r1 | ≈ | 0.5 | 0.5 | 0.5 | 1 | 1 | 1 | 1.6 | 1.6 | 2 | 2 | 2 |
| r2 | max | 0.9 | 1.2 | 1.5 | 1.8 | 2.4 | 3 | 3.6 | 4.5 | 5.4 | 6.3 | 7.2 |
| Weight of per 1000 steel products(≈kg) | - | - | - | - | - | - | - | - | - | - | - | |
| Length of Thread b | - | - | - | - | - | - | - | - | - | - | - | |
